GLOBAL EQUIPMENT SOLUTIONS COMPANY FOR THE SEAFOOD PROCESSING PLANT

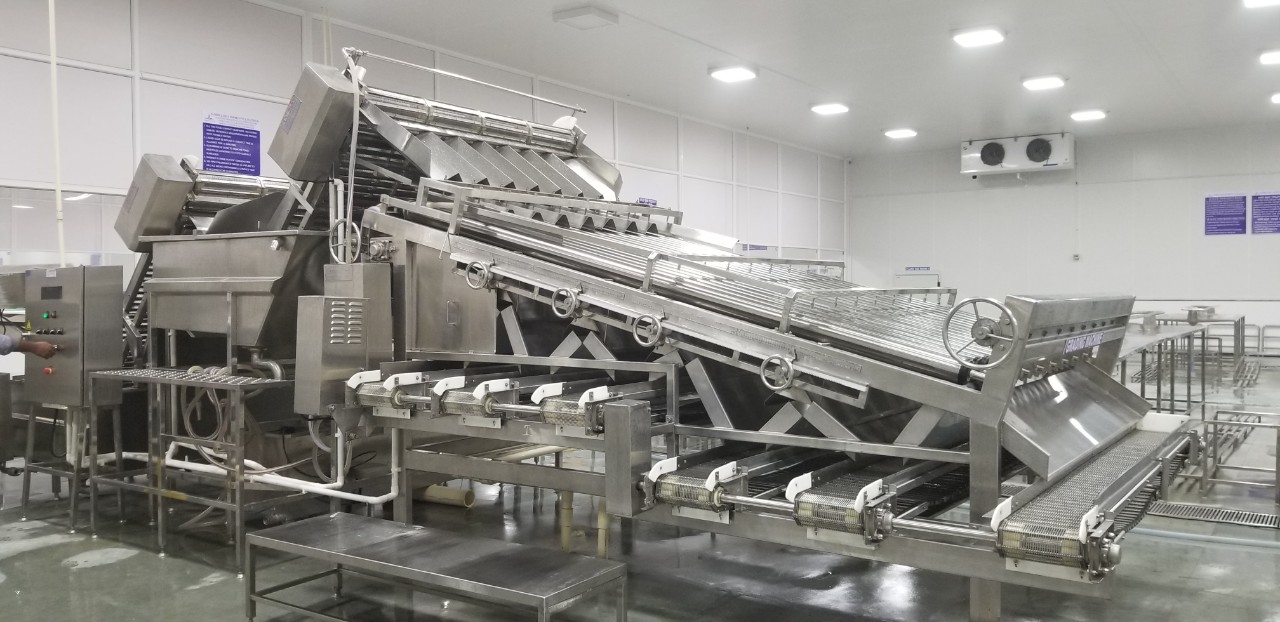

HLSO grading machine

MPC-800-CLPC

Origin: Vietnam

Used for shrimp grading of 6 sizes after head pulling (alo use for entire shrimp)with high accuracy and stability during in long-term use

Advantages:

  • High efficiency:

- 80% - 90% Focus on 4 central sizes

- 1.25 - 1.4 According to UR Standard

  • Gap adjustment mechanism is easy to operate and assure 80-90% accuracy in central sizes
  • Shrimp are contributed evenly before transfering to size grading system and avoiding go back the tank
  • Saving water consumption
  • Easy to clean and maintenance

Video: HLSO Grading Machine





HSLO GRADING MACHINE

Model

MPC-800-CLPC

Capacity

1.000 – 1.500 kg/hours

Accuracy

UR ≤ 1.4  (Focus on 4 central size)

Input conveyor width

1.900 mm

Output conveyor width

250 mm – 6 conveyors

Material

Stainless steel 304 (SUS 304)

Motor

3 phase – 380/415V – 50/60Hz

Energy consumption

3.0 Kw

Overall dimension

Length: 7.790 mm

Width: 3.250 mm

Height: 2.714 mm
